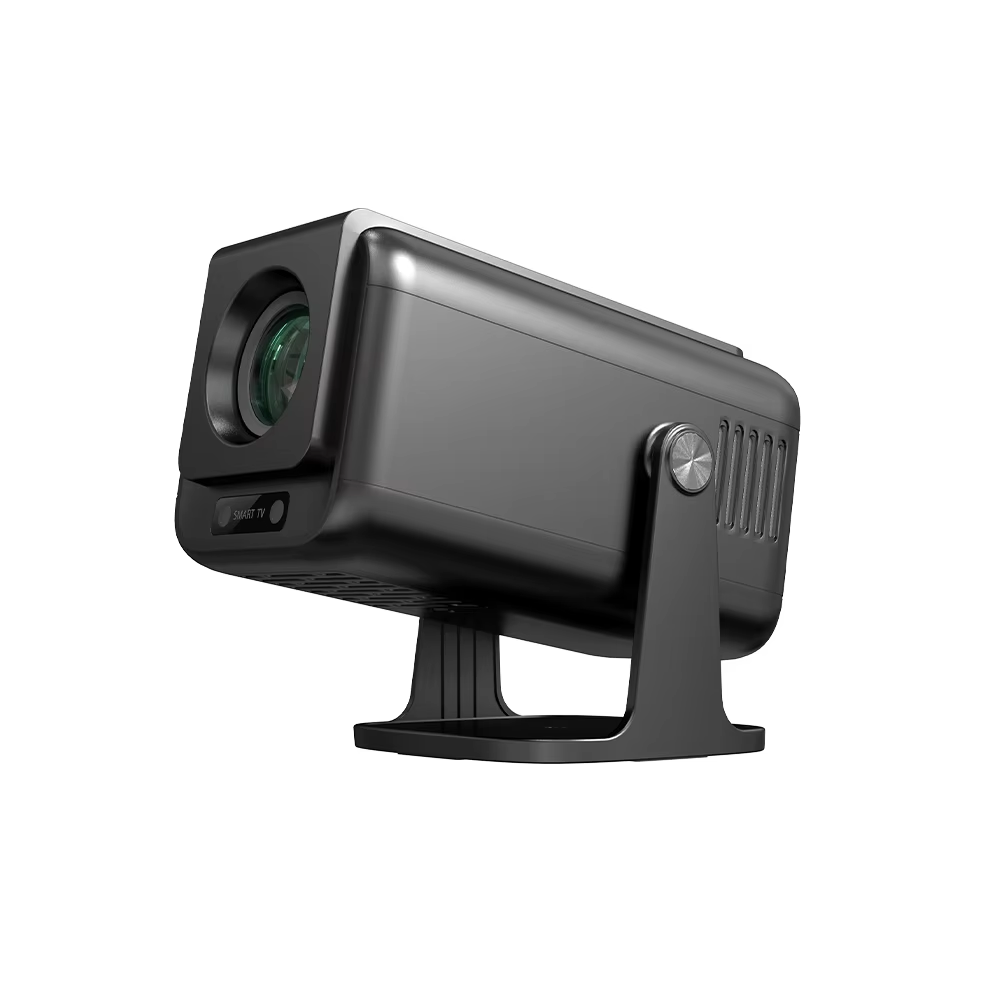

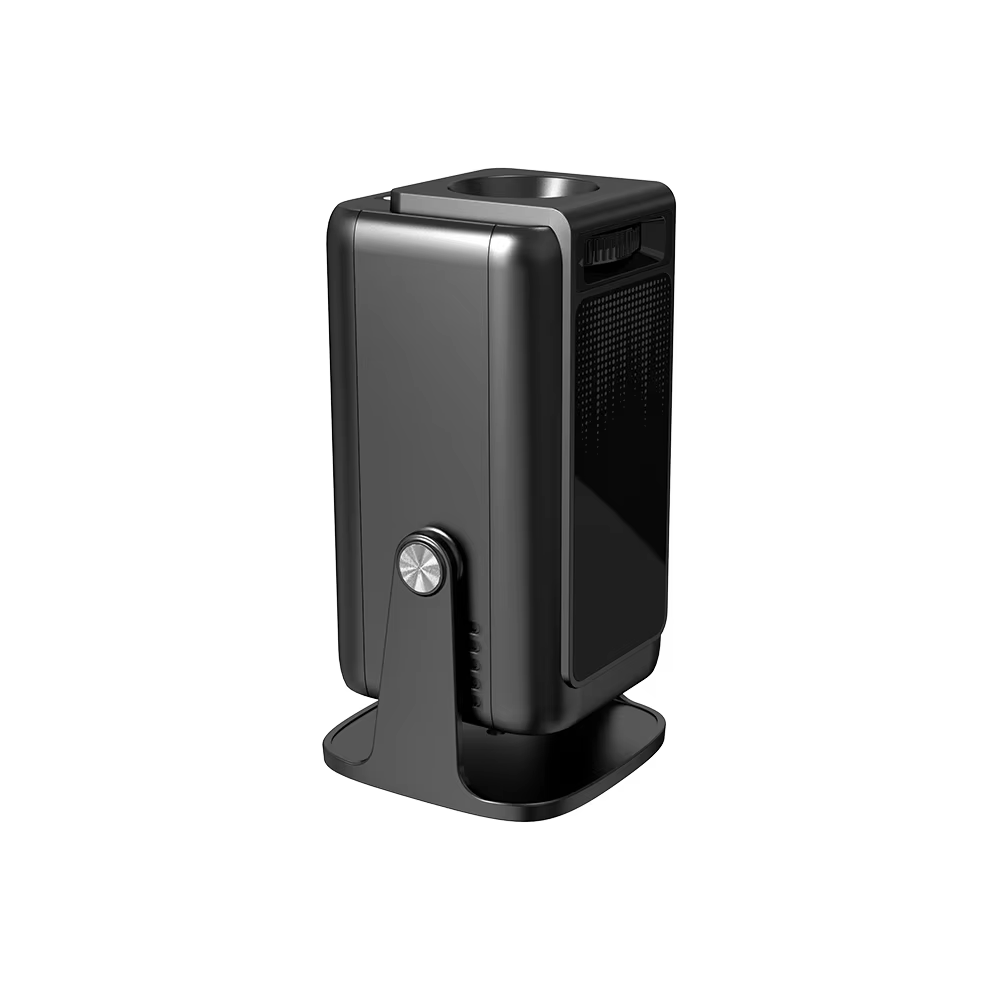

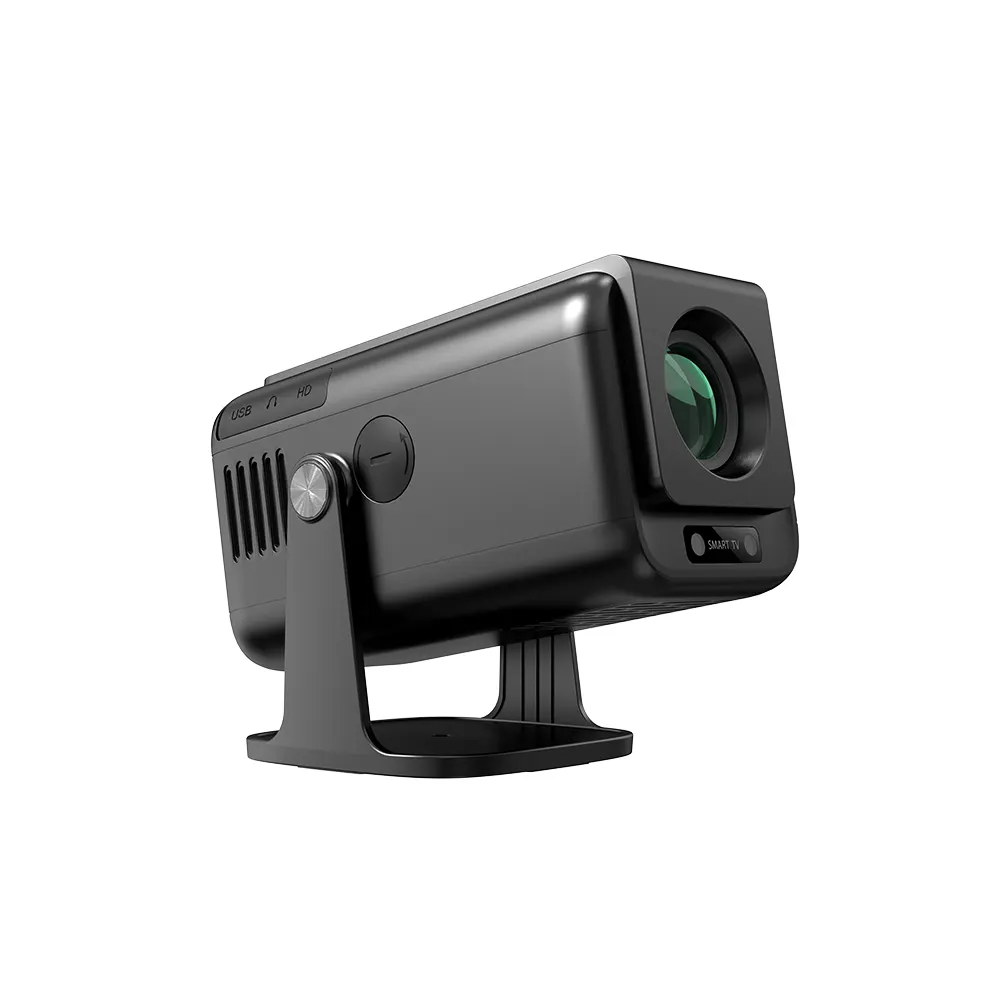

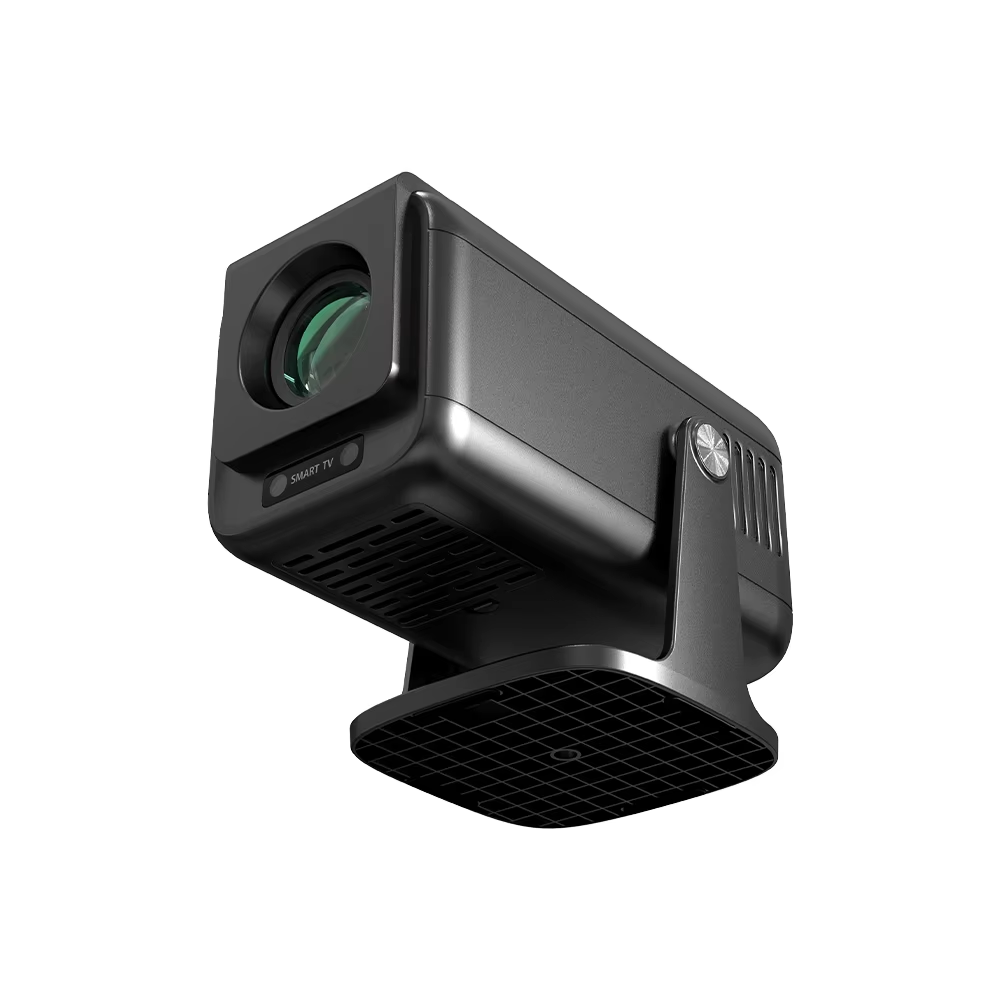

ISMARTX14 Smart HD Projector

All-in-one projector for home cinema, bedroom entertainment & office presentation

Product Overview

ISMARTX14 is a lightweight portable LCD smart projector. Equipped with Amlogic H723 quad-core chip and Android 14 OS, it supports auto focus & automatic vertical keystone correction. Featuring 300 ANSI brightness and native 1080P physical resolution, it delivers a screen size from 30 to 120 inches, perfect for home streaming, bedroom movie nights and small business meetings. Only 0.98kg net weight for easy carrying. Built-in premium speaker and full ports including USB, HDMI & audio jack, complete accessories for plug-and-play use.

Appearance & Dimension Specs

1. Product Dimension: 200112103MM

2. Single Packing Size: 246150140 MM

3. Net Weight: 0.98KG | Gross Weight: 1.35KG

4. Carton Spec: 504643 CM, 18 PCS per carton, total carton weight 25.3KG

5. Rated Power: 70W

Optical Projection Parameters

• Display Tech: LCD

• Light Source: LED, Service Life: 30000 Hours

• Color Temperature: 7600K

• Brightness: 300 ANSI Lumens

• Native Resolution: 1920*1080@60Hz, compatible with all FHD resolutions

• Contrast Ratio: 1500:1

• Projection Size: 30–120 inch, Optimal Viewing Size: 60–90 inch

• Aspect Ratio: 4:3 / 16:9 Switchable

• Throw Ratio: 1.25:1

• Luminance Uniformity: 75%

• Projection Distance: 1–4 Meters

• Focus Mode: Auto Focus + Manual Focus

• Keystone Correction: Automatic Vertical Trapezoid Correction

• Projection Modes: Front, Hoisting, Rear, Side Projection

• Speaker: Built-in Box Speaker, 4Ω 5W ×1

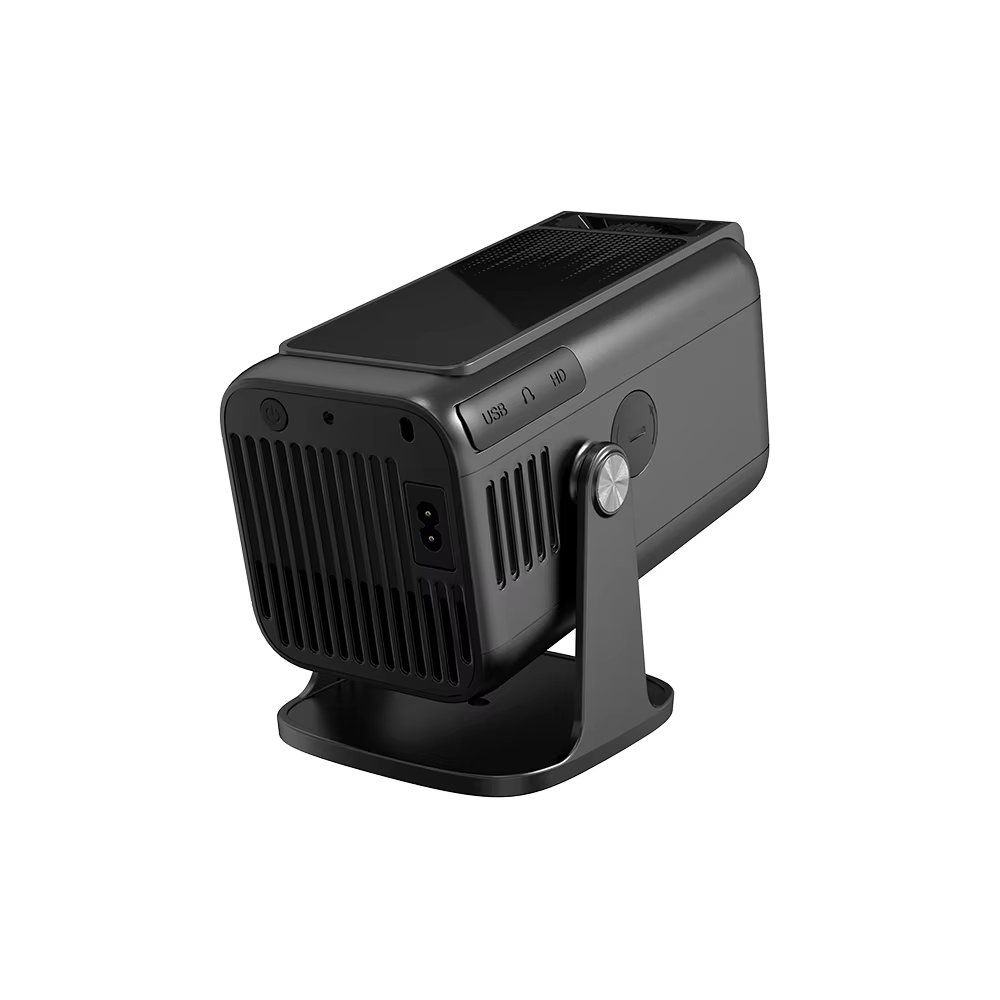

Interface Layout

1. USB2.0 ×1: Play videos, images & files from USB drive

2. HDMI2.0 ×1: Connect laptop, game console, TV box

3. 3.5mm Audio Output ×1: For headphones & external speakers

4. AC Power Jack: 100–250V, 50/60Hz universal voltage

5. Physical Power Button ×1

Standard Accessories

• 1.5M 3-core AC Power Cable ×1

• 1M HDMI Cable ×1

• Infrared Remote Control ×1

Hardware & System Configuration

• Main Chip: Amlogic H723

• CPU: Quad-core Cortex-A53 with NEON SIMD co-processor

• GPU: Multi-core ARMv8-A GPU, OpenGL ES 2.0 supported, 2.5D hardware acceleration

• Display Output: Dual-channel LVDS, max 1080P 60Hz

• Video Decoding: Hardware decode 4K 30fps H.265/VP9 & 1080P 60fps multi-format videos

• OS: Android 14

• Memory & Storage: 1GB RAM + 8GB ROM

• Wireless: 2.4G+5G Dual Band WiFi (802.11 b/g/n), Bluetooth 4.2

• Color Mode: Customizable color adjustment
